Beryllium Copper:
Beryllium Copper, also known as Copper Beryllium, CuBe2, BeCu, Beryllium Bronze, is a metal alloy of mainly consisting of Copper with Beryllium in 0.5 to 2%, and sometimes with other alloying elements.
Copper Beryllium Ingots
Aluminium Beryllium Ingots
Nickle Beryllium Ingots

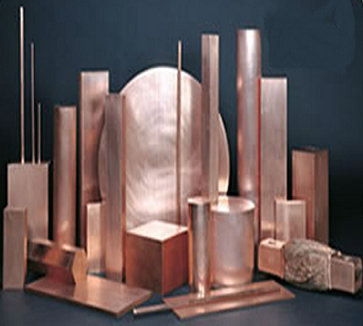

Beryllium Copper Products
C17200/Alloy 25:
C17200 / ALLOY 25 is an alloy which contains 2 % Beryllium Copper Alloy. This alloy achieves highest mechanical strength and hardness after heat treatment.
Properties:
- Fast Heating & Fast Cooling
- Excellent Conductivity
- High Tensile Strength
- Non Oxidizing Acid Resistance
- Wear & Gall Resistant
- Non Sparkling
- High Fatigue Resistance
- Elevated Temperature Strength
- Corrosion Resistance
- Ductile, Weldable & Machinable
- High Melting Point
- Dimension Stability
C17500/C17510:
- C17500 is [CuCo2Be] COPPER - COBALT - BERYLLIUM ALLOYS containing Be 0.4 ~ 0.7 % ; Co 2.4 ~ 2.7% ; Cu is Balance.
- C17510 is [CuNi2Be] COPPER - NICKEL - BERYLLIUM ALLOYS containing Be 0.4 ~ 0.7 % ; Ni 1.7% ~ 2.0% ; Cu is Balance.
Both these alloys are very similar. It has better Strength and Thermal Conductivity compared to C17200. Highly used for Resistance Welding Applications.
Welding:
- Soldering is rated as good
- Brazing is rated as good
- Oxyacetylene welding is not recommended
- Gas shielding arc welding is rated as fair
- Coated metal arc welding is rated as fair
- Spot welding is rated as good
- Seam & butt welding is rated fair
We also supply other copper materials such as
- Silver Copper- Ag 0.08-0.12%, P 0.001-0.007%, Rest-Cu
- Zirconium Copper Zr 0.10-0.20%, Rest-Cu
- Chromium Copper Cr 0.6-1.2%, Fe 0.10% Pb 0.05%, Si 0.10%, Rest- Cu
- Chromium Zirconium Copper Cr 0.50-1.5%, Zr 0.05-0.25%, Rest-Cu
- Nickle Silicon Chromium Copper Ni 1.8- 3%, Cr 0.1-0.8%, Fe 0.15%, Si 0.4-0.8%, Rest-Cu
- Tungsten Copper from 56 to 100% tungsten & 20 to 44% copper
